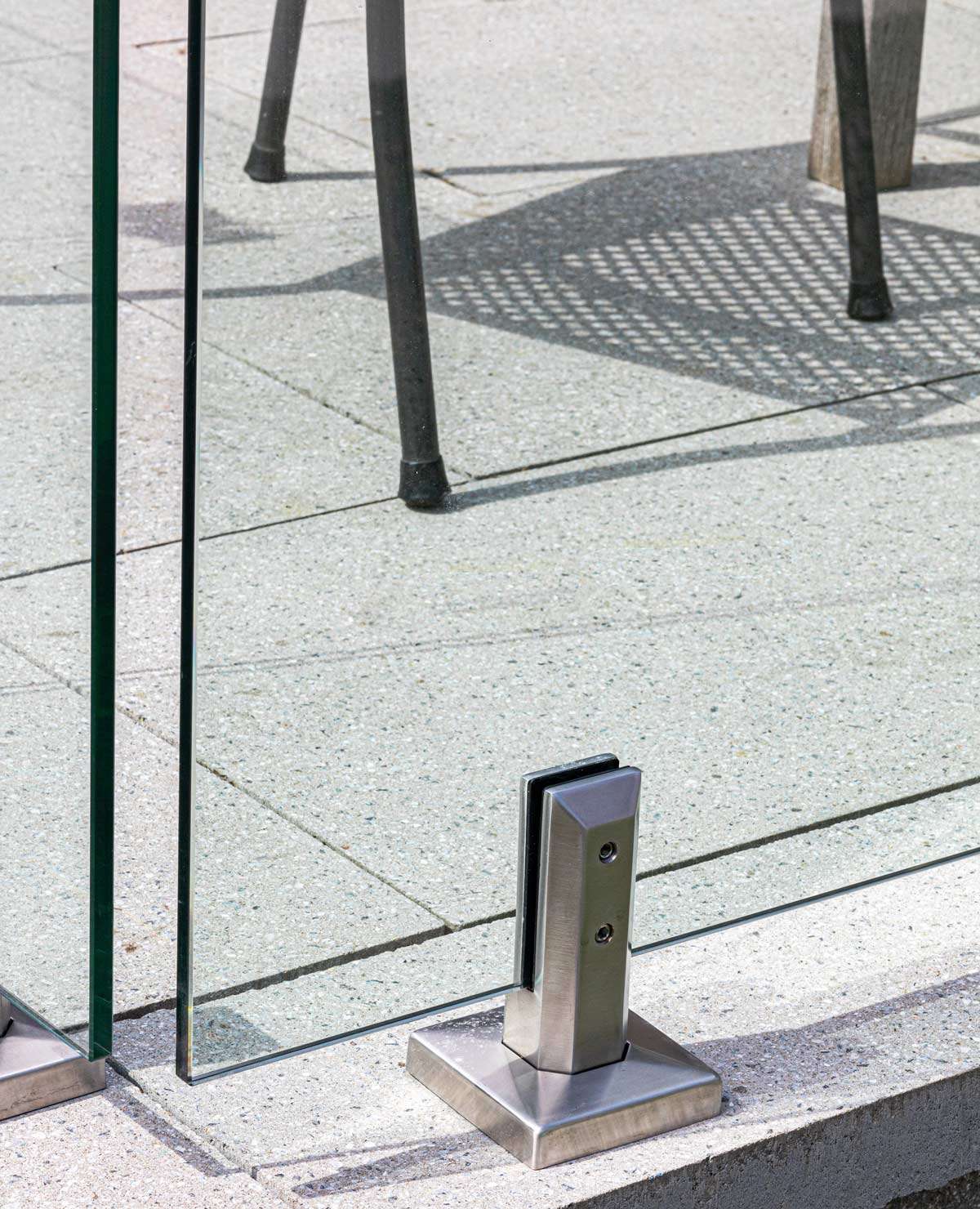

Floor Mount Square Spigot

Heavy-duty floor-mount spigot for frameless glass railing systems. Mounts to the top surface of concrete, wood, or steel substrates using a 4-bolt base plate. Machined from 2205 duplex marine-grade stainless steel for maximum corrosion resistance in coastal, pool, and freeze-thaw environments.

Features

• 2205 duplex marine-grade stainless steel — roughly double the yield strength of 316 stainless
• Accepts 12mm (1/2") tempered glass panels
• Precision-machined rubber gaskets protect glass edges
• Allen-head set screws for secure glass clamping
• 4-bolt base plate with slotted holes for alignment adjustment

When to Use Floor-Mount Spigots

Floor-mount (top-mount) spigots are the most common mounting style for new deck builds and concrete surfaces. They bolt directly to the deck surface, providing a clean, upright glass panel. For retrofits or narrow balconies where you want to maximize deck space, consider our side-mount fascia spigot instead.

Substrate Compatibility

• Concrete: Use with our concrete anchor bolt kit
• Wood: Use with our wood deck lag bolt kit
• Steel: Through-bolt with washers (hardware not included)

Specifications

• Material: 2205 duplex stainless steel
• Glass acceptance: 12mm tempered
• Finish: Brushed Stainless or Matte Black powder coat
• Mounting: 4-bolt base plate, floor/top-mount

For installation help, see our installation guides or read our spigot types guide to compare all mounting options.
