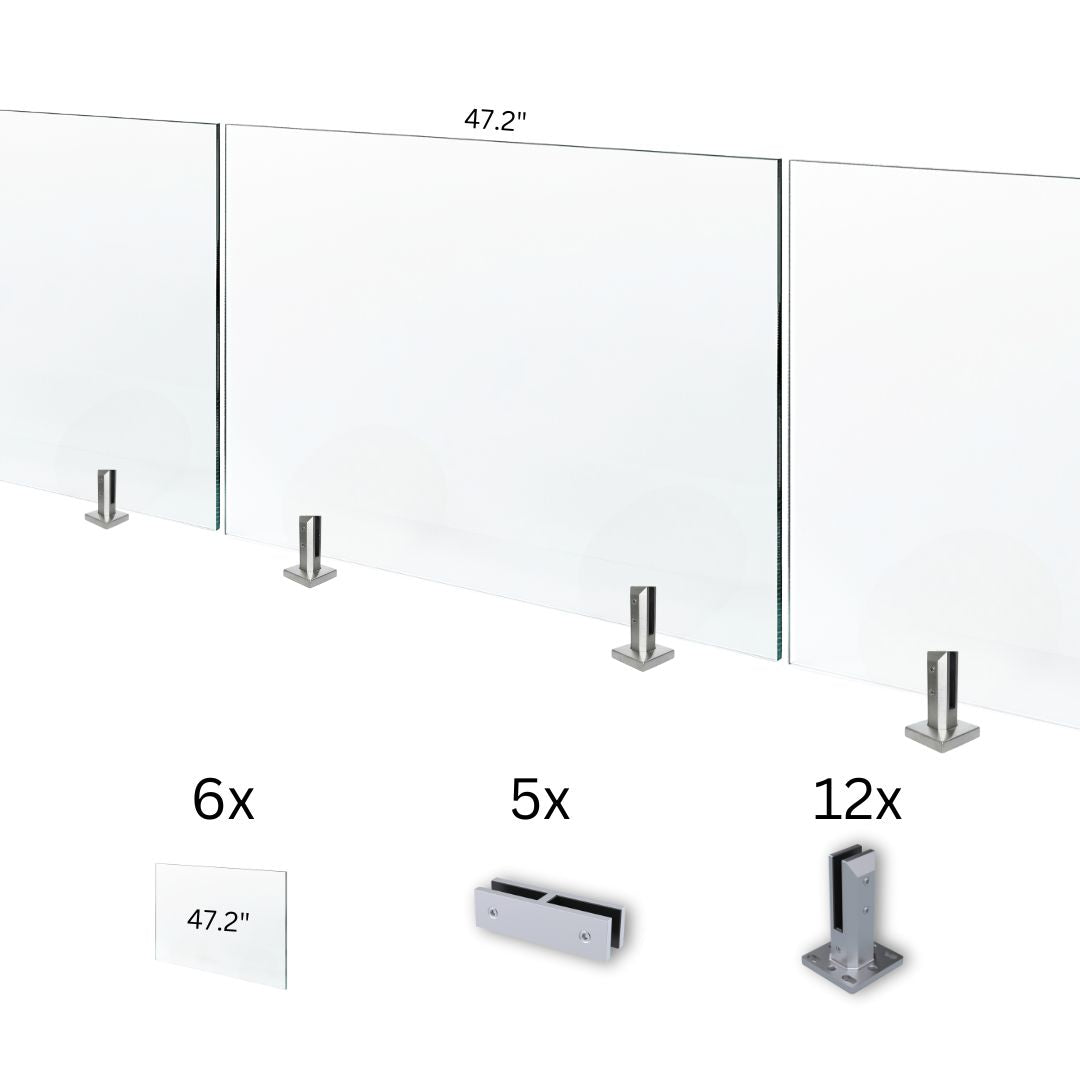

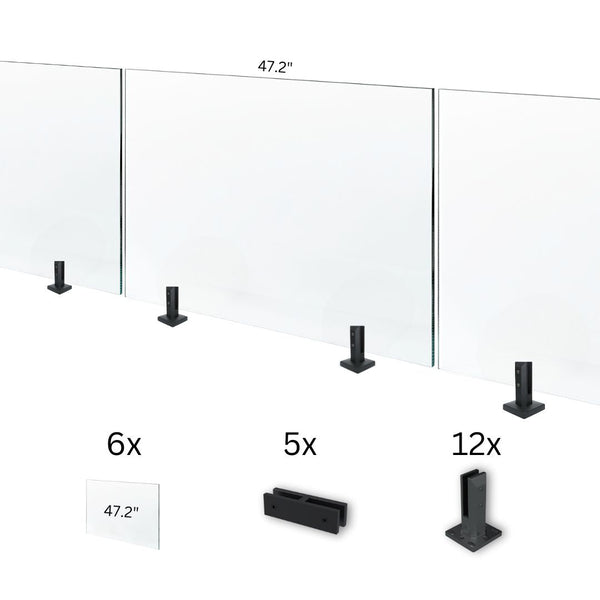

The 24 ft Glass Railing Kit pairs 6 tempered glass panels with floor-mount hardware for a straight railing section. Choose your height option and hardware finish above.
What's included
- 6 tempered glass panels, each 47.2" wide and 12mm thick
- 12 floor-mount spigots
- 48 wood screws
- 5 inline connectors for straight panel-to-panel joints
Size and finish options
Height options: 36", 42" (most popular), and 48". Hardware finishes: Brushed Stainless Steel or Matte Black.
24 ft is a nominal kit length. The glass widths total 283.2" before joint and end gaps. Confirm your measured opening, panel spacing, mounting position, and required finished railing height before ordering. Tempered glass cannot be cut after manufacture.
Plan your installation
Included screws are for wood mounting. The supporting structure and fasteners must suit your project. Concrete anchors, corner connectors, additional wall connectors, gates, and cap rails are separate items when required by your layout.
For concrete, our anchor bolt kit contains anchors for four floor-mount spigots. Confirm anchor suitability and installation requirements before purchasing. For wood, fasten into appropriate structural framing or blocking.
Confirm glass and hardware suitability for your location and application with your installer before ordering. Use the model-specific installation drawing for anchor spacing, embedment, and tightening instructions.
Read the installation planning guide, browse individual glass panels, or send your measurements for a material list.
We ship to all 50 US states. Orders over $500 qualify for free shipping. Standard delivery takes 5-10 business days.
Glass panels are final sale and cannot be returned or exchanged. Hardware items may be returned within 30 days in original condition.
Plan your railing
Compare glass railing kits
Choose a starting layout, then confirm the fit with your measurements. All six kits offer height and finish options.
Scroll sideways to compare hardware and prices.
| Kit | Glass panels | Floor spigots | Wood screws | Connectors | Starting price |
|---|---|---|---|---|---|
| 3 ft kit | 1 × 35.4" wide | 2 | 8 | 1 wall | $680.00 USD |
| 6 ft kit | 2 × 35.4" wide | 4 | 16 | 1 inline | $1,360.00 USD |
| 8 ft kit | 2 × 47.2" wide | 4 | 16 | 1 inline | $1,420.00 USD |

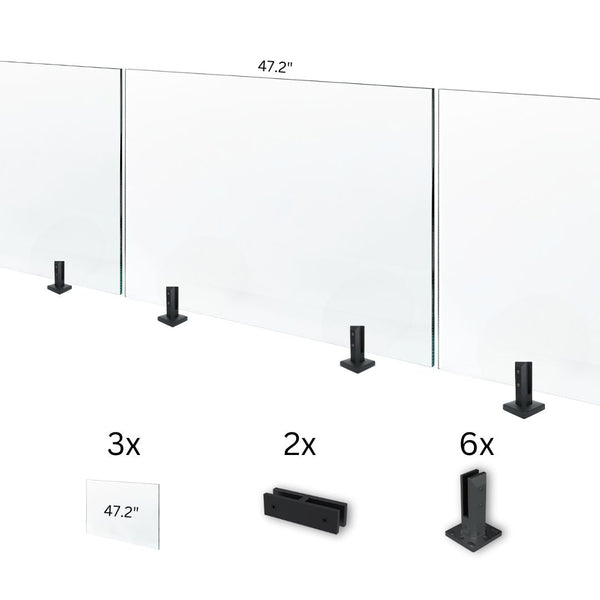

| 12 ft kit | 3 × 47.2" wide | 6 | 24 | 2 inline | $2,130.00 USD |

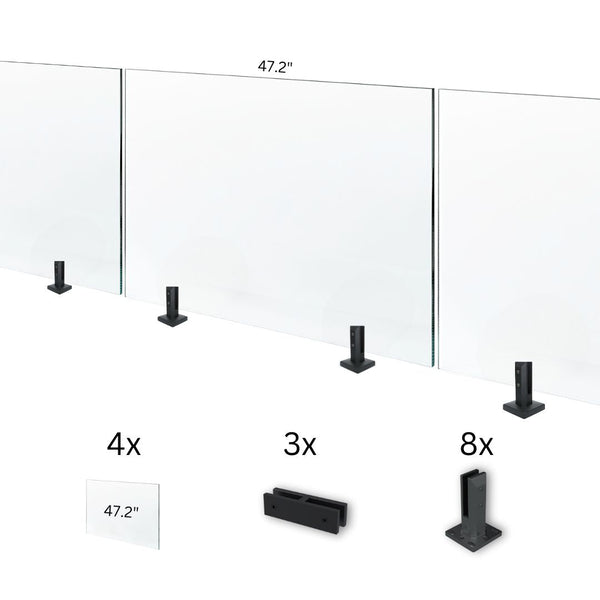

| 16 ft kit | 4 × 47.2" wide | 8 | 32 | 3 inline | $2,600.00 USD |
| 24 ft kitViewing this kit | 6 × 47.2" wide | 12 | 48 | 5 inline | $3,730.00 USD |
Kit lengths are nominal. Panel widths exclude the joint and end gaps. Confirm the complete layout before ordering. Concrete anchors, corners, extra end connectors, gates, and cap rails are separate when needed.
Panel width reference
12mm glass thickness. Width schematic only. Height, bottom clearance, and mounting dimensions must be confirmed for your selected setup. This is not a drilling template.
Before you install
- Measure each straight run and mark corners, walls, stairs, and gate openings.
- Confirm the required finished railing height and suitable glass and hardware for your location.
- Check the mounting structure. Wood fasteners need suitable framing or blocking; concrete requires suitable anchors.
- Get the model-specific drawing for anchor spacing, embedment, glass clearances, and tightening instructions before drilling.
RF Transparent portfolio

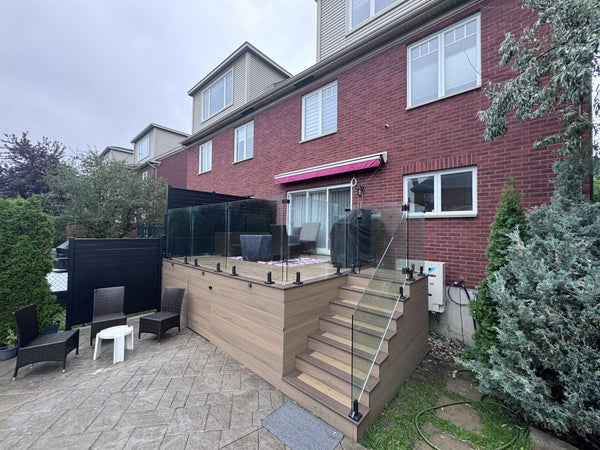

See installed glass systems
Deck and pool projects from RF Transparent's published portfolio. Hardware and layouts vary by project.
View the RF Transparent project portfolio
Hardware drawings and installation references
Review the manufacturer's original documents, then confirm the drawing and mounting details for your order.
- RF hardware catalog: top-mount spigot dimensions (PDF, page 12)
- Top-mount spigot connections on wood and concrete (13-page engineering PDF)
The engineering reference was prepared for RF Transparent in Canada on May 28, 2024. It does not establish approval for every US project. Confirm the selected glass, hardware, supporting structure and local requirements before installation.
