How to Install a Frameless Glass Railing: Step-by-Step Guide

Installing a frameless glass railing is one of the most impactful upgrades you can make to a deck, balcony, or patio -- and with the right kit and some careful preparation, it is a project many handy homeowners can complete in a weekend. This step-by-step guide covers the full process from layout planning through cap rail installation, with tips to avoid the most common mistakes.

Before you begin, make sure you have reviewed your local building codes for guard height, load requirements, and any permit obligations. If you need help selecting the right kit size and spigot type for your project, see our guides on choosing glass panels and glass railing costs.

Tools and Materials

Gather everything before you start. Having the right tools on hand prevents mid-project trips to the hardware store.

Tools

• Hammer drill with masonry bits (for concrete substrates) or standard drill with wood bits (for wood decks)
• Socket wrench set (typically 13 mm and 17 mm for spigot hardware)
• Torpedo level (magnetic preferred) and a 4-foot level
• Tape measure (25 ft minimum)
• Pencil or marking chalk
• Allen key set (included with most spigot kits)
• Silicone sealant and caulking gun
• Miter saw or hacksaw with fine-tooth metal blade (for cutting cap rail)
• Deburring tool or metal file
• Vacuum or compressed air (for cleaning drill holes in concrete)

Safety Equipment

• Safety glasses (mandatory when drilling and handling glass)
• Heavy-duty work gloves (glass edges can be sharp even when tempered)
• Hearing protection (for hammer drilling into concrete)
• Steel-toed boots recommended when moving glass panels

Materials (Included in Our Kits)

• Tempered glass panels (3/8" or 1/2" thick, depending on kit)
• Spigots with rubber gaskets and set screws (floor-mount or side-mount)
• Concrete wedge anchors or lag bolts (substrate-dependent)
• Connectors: 180-degree inline, 90-degree corner, and wall-mount as needed
• Cap rail with end caps and corner pieces (optional)

For help determining exactly how many panels and spigots you need, use our measuring guide.

Step 1: Layout Planning

Accurate layout is the foundation of a professional-looking installation. Mistakes here cascade through every subsequent step.

1. Measure the total run length along each straight section of your deck edge. Record the length of each section separately -- a 24-foot L-shaped deck might have a 16-foot front run and an 8-foot side run.
2. Determine panel placement. Standard glass panel widths create center-to-center spigot spacings of approximately 35.4 inches (for 900 mm panels) or 47.2 inches (for 1200 mm panels). Divide each run length by the panel width to calculate the number of panels. If the run does not divide evenly, you may need one custom-cut panel per section.
3. Mark spigot centerlines on the deck surface (for floor-mount) or the fascia face (for side-mount) using a chalk line or pencil. Start from one end and mark each spigot position along the run.
4. Mark anchor bolt holes. Place each spigot base plate on its mark and trace the four bolt holes with a pencil. Double-check that all marks are the correct distance from the deck edge -- typically 2 to 3 inches from the outer edge, depending on your spigot model.
5. Check level. Run your 4-foot level along the deck surface between spigot marks. If the surface is not level, note the high and low points. You will shim spigots as needed during installation to ensure the glass panels and cap rail form a straight, level line.

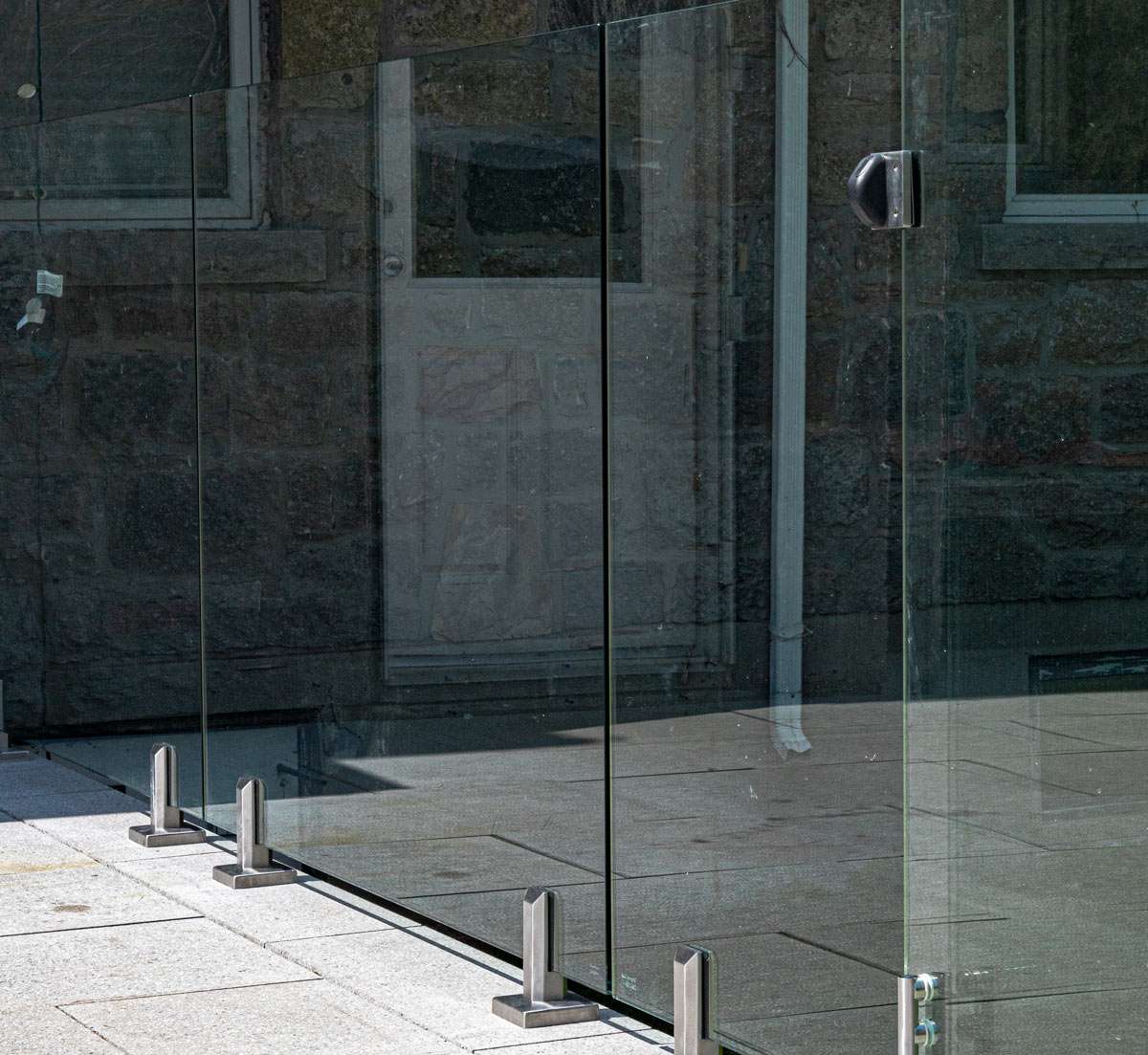

Step 2: Mounting the Spigots

The mounting process differs depending on your substrate. Follow the instructions for your specific situation.

Concrete Substrate

1. Drill anchor holes at each marked position using a hammer drill with the correct masonry bit diameter (typically 1/2" for M12 wedge anchors). Drill to the depth specified by the anchor manufacturer -- usually 3 to 3.5 inches into solid concrete. Do not drill into the rebar if you encounter it; shift the hole slightly.
2. Clean each hole thoroughly with compressed air or a vacuum. Dust left in the hole will prevent the anchor from gripping properly. This is one of the most overlooked steps and a common cause of loose spigots.
3. Insert wedge anchors into the holes and tap them flush with a hammer. Place the spigot base plate over the anchors, add washers, and thread the nuts.
4. Level the spigot by placing your torpedo level on the clamp slot (the part that will hold the glass). Adjust with shims if the concrete surface is uneven.
5. Torque the anchor nuts to the manufacturer's specification (typically 40-50 ft-lbs for M12 anchors). Do not over-torque -- you can crack the concrete or strip the anchor.

Wood Substrate

1. Pre-drill pilot holes at each marked position using a standard drill bit slightly smaller than the lag bolt diameter (typically 5/16" pilot for 3/8" lag bolts).
2. Verify backing structure. The lag bolts must penetrate into a solid joist or beam beneath the decking boards -- not just the decking material alone. If your spigot positions do not align with joists, you will need to add blocking between joists from below.
3. Place the spigot base plate, insert lag bolts with washers, and drive them in with a socket wrench. Leave them slightly loose until you have checked level.
4. Level and final-torque. Check plumb and level, shim if necessary, then fully tighten the lag bolts.

Apply a bead of silicone sealant around the base plate perimeter on both concrete and wood substrates. This prevents water from pooling under the plate and accelerating corrosion or rot.

Step 3: Setting the Glass Panels

This is the step that transforms your project from hardware into a finished railing. Handle glass panels with care -- always carry them vertically with two people for panels wider than 30 inches.

1. Check that rubber gaskets are seated inside each spigot clamp. The gaskets should line both sides of the clamp slot. If any are missing or displaced, reposition them before inserting the glass.
2. Slide the glass panel down into the spigot clamps. The bottom edge of the panel should rest on the lower gasket with approximately 1/2 inch of glass seated below the set screw line. Center the panel so that equal amounts of glass extend beyond each side of the spigot.
3. Finger-tighten the set screws just enough to hold the panel upright. Do not fully torque yet.
4. Check plumb. Place your level against the face of the glass panel. Adjust the panel position within the clamp slot until it is perfectly plumb (vertical). On a sloped deck, you may need to account for the slope while keeping the top edge of all panels aligned horizontally.
5. Final-torque the set screws using the provided Allen key. Tighten in an alternating pattern (top-left, bottom-right, top-right, bottom-left) to distribute pressure evenly. Do not over-torque. The set screws should be firm against the gasket but not compressing the rubber flat. Over-tightening is the number-one cause of cracked glass panels during installation.
6. Repeat for each panel along the run, checking plumb and alignment as you go.

Step 4: Installing Connectors

Connectors join adjacent glass panels and terminate the railing run at walls or posts. There are three types:

180-Degree Inline Connectors

Used between two panels in a straight run. The connector clamps onto the edges of both panels where they meet, creating a clean joint with a small gap (typically 3/16" to 1/4") for thermal expansion. Install the connector by sliding it over both glass edges, inserting the rubber gaskets, and tightening the set screws evenly.

90-Degree Corner Connectors

Used where two railing runs meet at a right angle (such as the corner of an L-shaped deck). These connectors grip one panel edge on each side of the 90-degree joint. Ensure both panels are plumb before tightening.

Wall-Mount Connectors

Used where a railing run terminates at a wall or post. The connector bolts to the wall surface on one side and clamps the glass panel edge on the other. Use appropriate wall anchors for your wall material (concrete anchors, wood screws, or toggle bolts for hollow walls).

Leave a thermal expansion gap of at least 3/16 inch between every glass panel edge and its neighboring panel or wall surface. Glass expands and contracts with temperature changes, and eliminating this gap can create dangerous pressure points. For more on connector options, read our cap rail and connector guide.

Step 5: Cap Rail Installation (Optional)

A cap rail sits on top of the glass edge, providing a smooth gripping surface and a finished look. Cap rails are available in round, square, and rectangular profiles in brushed stainless steel or matte black.

1. Measure each straight section of your railing and cut the cap rail to length using a miter saw with a fine-tooth metal blade or a hacksaw. Deburr the cut ends with a file or deburring tool.
2. Slide the rubber channel gasket into the underside of the cap rail if it is not pre-installed. This gasket grips the top edge of the glass and prevents metal-to-glass contact.
3. Press the cap rail down onto the glass edge. Start at one end and work toward the other, pressing firmly until the gasket seats over the glass. A rubber mallet can help on tight-fitting rails.
4. Install corner pieces at 90-degree joints by connecting two cap rail sections with the provided corner fitting. Secure with set screws.
5. Install end caps at each termination point (wall ends, post ends, or open ends). End caps press or screw into the open end of the cap rail extrusion.
6. Check alignment. Sight down the cap rail from one end. It should form a straight, level line. If any section dips or rises, adjust the glass panel plumb in its spigot clamp.

Common Mistakes to Avoid

After helping thousands of customers with their installations, these are the errors we see most often:

• Skipping the level check at every stage. A spigot that is 1/8 inch off level will create a visible lean in the glass panel above it. Check level after mounting each spigot, after setting each panel, and after installing the cap rail.
• Over-torquing set screws. Tempered glass is strong in compression but brittle under point loads. Excessive set screw pressure concentrates force on a small area and can cause a spontaneous fracture. Tighten until snug against the gasket, then stop.
• Using the wrong anchors for the substrate. Concrete wedge anchors will not hold in wood. Lag bolts will not grip in concrete. And neither will work in hollow block or brick veneer without specialized anchors. Identify your substrate material before ordering.
• Forgetting thermal expansion gaps. Glass panels installed with zero gap between them or between the panel and a wall will eventually push against each other as temperatures rise. Maintain at least 3/16 inch at every joint.
• Not checking for underground utilities or rebar. Before drilling into a concrete slab, especially on a ground-level patio, confirm there are no embedded electrical conduits, plumbing, or post-tension cables in the drill path.
• Installing on an inadequate substrate. Spigots bolted into a thin concrete topping (less than 4 inches) or unsupported decking boards will not meet structural load requirements. Verify your substrate can accept the required anchors and withstand the design loads specified in your local code.

When to Hire a Professional

While many homeowners successfully install glass railings as a DIY project, certain situations call for professional help:

• Core-drill installations into concrete (specialized equipment required)
• Multi-story balconies or commercial applications with stricter code requirements
• Complex layouts with multiple angles, curves, or staircase runs
• Substrates you are unsure about (post-tension concrete, hollow block, steel)

If you are a contractor, check out our Pro Program for trade pricing and priority support. For details on what contractors should consider, see our contractor's guide to glass railing.

Ready to get started? Request a free quote with your deck measurements and photos, and we will recommend the right kit, spigot type, and hardware finish for your project. Or browse our complete glass railing kits -- each kit ships with everything you need, including detailed installation instructions specific to your order. Questions? Contact our team anytime.

Frequently Asked Questions

Can a homeowner install glass railing without a contractor?

Yes. Our spigot-based systems are designed for DIY installation with basic tools including a drill, level, and wrench. Our installation guides provide step-by-step instructions with diagrams. Most homeowners complete a 20 to 30 foot run in a weekend.

How long does glass railing installation take?

For an experienced DIYer, plan on 2 to 4 hours per 10 linear feet. This includes marking and drilling spigot positions, mounting the spigots, setting glass panels, and installing connectors. First-time installers may take slightly longer.

Do I need a permit to install glass railing?

Permit requirements vary by jurisdiction. Most municipalities require a building permit for deck railings and guardrails. Check with your local building department before starting. Our building codes page provides a state-by-state overview.

Can glass railing be installed on an existing deck?

Yes, glass railing spigots can be retrofitted onto existing decks. Floor-mount spigots bolt to the deck surface, and side-mount spigots attach to the deck fascia. Verify that the existing structure can support the required lateral loads before installation.

What is the most common installation mistake?

The most common mistake is not checking level at each stage. If the first spigot is not plumb, every subsequent panel will be off. Always verify level and plumb after mounting each spigot and before tightening the final set screws on the glass panels.
