Glass Railing Accessories: The Complete Parts Guide
Beyond glass panels and spigots, a complete glass railing installation requires several accessory components. Here is a guide to every part you might need and when you need it.
Rubber Gaskets and Wedges
Rubber gaskets fit inside spigots and connectors, cushioning the glass and providing grip. They come in different sizes for different glass thicknesses (3/8" and 1/2"). Always use the correct gasket for your glass thickness — an undersized gasket will not hold the glass securely.
Silicone Sealant
Structural silicone sealant is applied between the glass and gasket as a secondary retention method and weather seal. Use a neutral-cure silicone rated for outdoor use. Acidic silicone can corrode stainless steel over time.
Concrete Anchors
For concrete substrates, expansion anchors or epoxy anchors secure spigots to the surface. The anchor type depends on the concrete age, thickness, and load requirements. Wedge anchors are standard for solid concrete; sleeve anchors work for hollow core or thin slabs.
Shims and Leveling Plates
Stainless steel shim plates compensate for minor surface irregularities. If your deck surface is not perfectly level, shims under the spigot base plate bring each mounting point to the correct height.
End Caps
Decorative end caps cover exposed cap rail ends for a finished appearance. Available in flat, rounded, and wall-mount styles to match your cap rail profile.
Wall Flanges and Wall Return Brackets
Where a glass railing terminates at a wall, wall mount connectors (also called wall flanges) provide a secure termination point. They anchor to the wall structure and hold the glass edge in a gasket, just like a spigot.
Gate Hardware
For pool barriers and controlled access points, gate hardware includes self-closing hinges, self-latching mechanisms, and gate stops. Pool barrier codes require specific gate hardware features — see our pool fence guide for details.

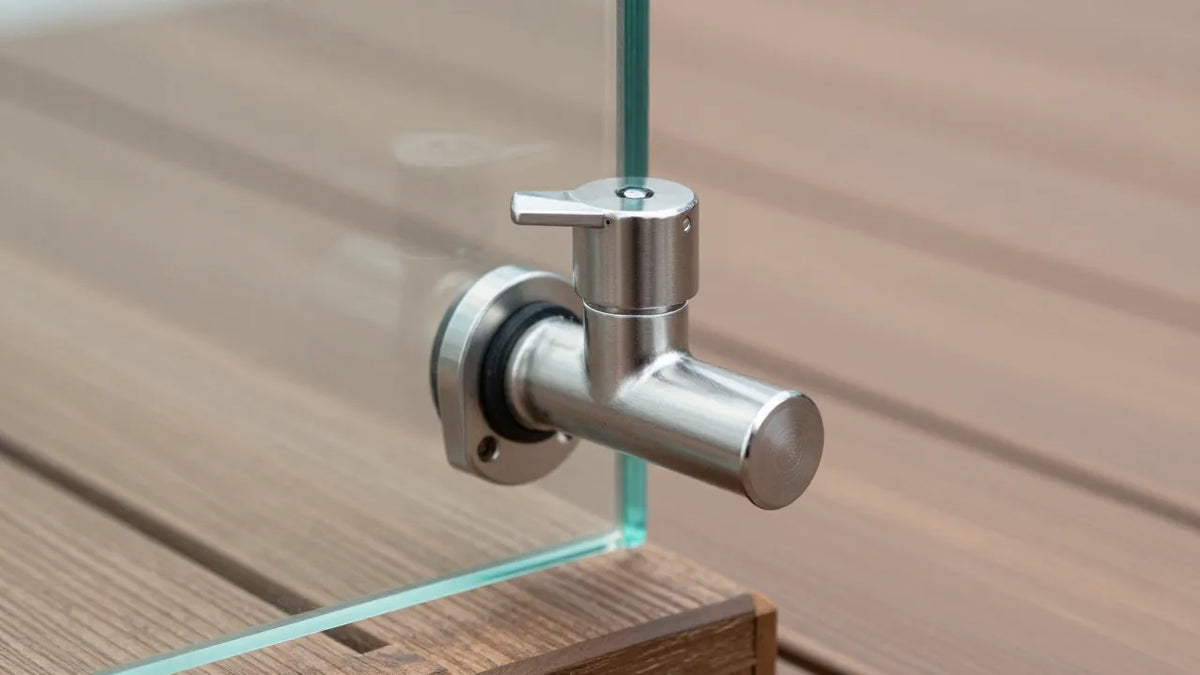

Glass Clamps and Standoff Pins
Glass clamps are an alternative to spigots for certain mounting configurations. They grip the glass at specific points rather than along the full edge. Standoff pins are used for decorative glass panels that are not structural guards.
Touch-Up Paint
For matte black hardware, keep a bottle of touch-up paint on hand. Small chips from installation or wear can be touched up to prevent corrosion of the underlying steel and maintain the uniform black appearance.
What You Need for a Basic Installation
For a straightforward straight-run deck railing, your minimum parts list is:
- Glass panels
- Floor-mount spigots (one per panel edge)
- Inline connectors (between adjacent panels)
- Wall mount connectors (at each wall termination)
- Rubber gaskets (included with spigots and connectors)
- Concrete anchors or wood screws (match your substrate)
- Silicone sealant
- Cap rail (optional but recommended)
Not sure what you need? Submit a quote request and we will provide a complete itemized parts list for your project.
FAQ
Are rubber gaskets universal?
No. Gaskets are sized for specific glass thicknesses and specific spigot/connector models. Always order gaskets matched to your hardware and glass. Using the wrong size compromises the grip and can void warranty.
How often do gaskets need replacement?
Quality EPDM rubber gaskets typically last 8-12 years before showing signs of hardening or cracking. In extreme heat or UV exposure, inspect annually and replace if the rubber no longer grips the glass firmly.
Do I need all these accessories for a kit installation?
No. Our glass railing kits include all necessary components — panels, spigots, connectors, gaskets, and anchors — in one package. Accessories are mainly for custom installations or replacements.
