Glass Railing Lighting Ideas: LED Integration and Ambient Design
Adding lighting to a glass railing transforms a deck or balcony from a daytime space into an evening destination. LED technology has made railing lighting affordable, energy-efficient, and easy to install.
Lighting Placement Options

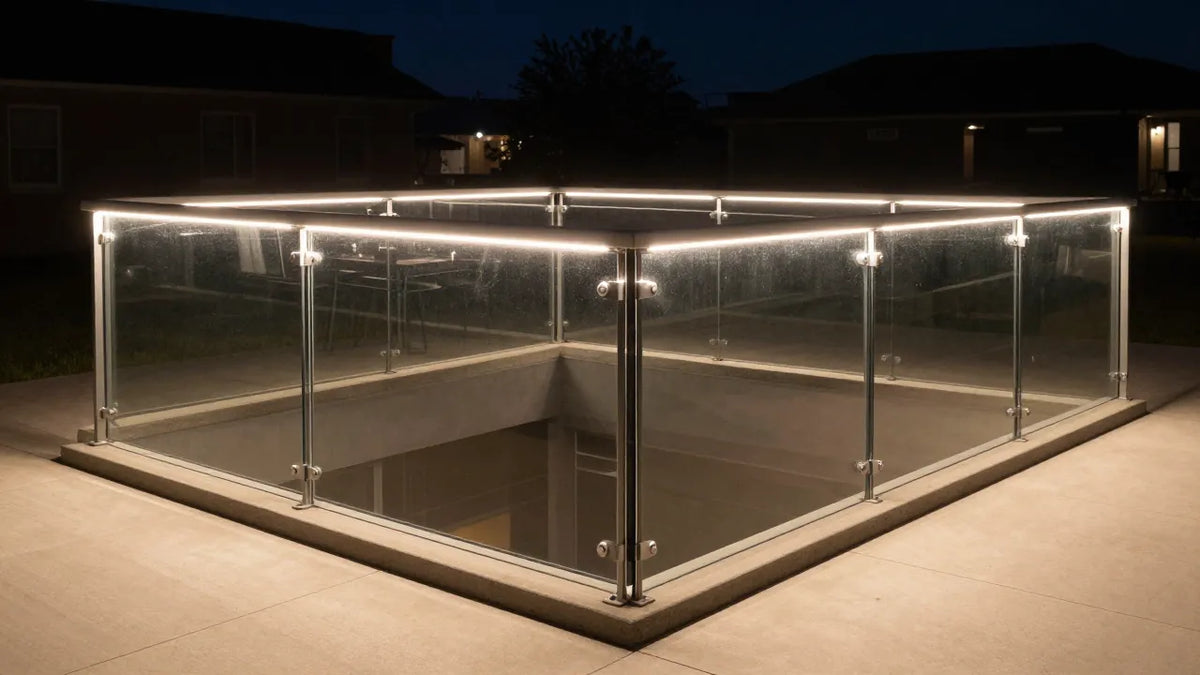

Cap Rail LED Strips
The most popular option. LED strip lights are installed inside a cap rail channel, casting light downward through the glass or outward along the deck edge. The cap rail conceals the strip completely, creating a clean, built-in look.
Under-Mount Spigot Lights
Small LED pucks or strips mounted beneath each spigot, casting a pool of light on the deck surface. This creates dramatic accent lighting and helps define the railing edge at night.
Base Channel Lighting
For systems with a continuous base channel, LED strips can be installed inside the channel to create a glowing line along the base of the railing. This is particularly effective on stairs.
Color Temperature
For outdoor ambient lighting, choose warm white in the 2700K–3000K range. This creates a welcoming, relaxed atmosphere similar to candlelight. Avoid cool white (4000K+) outdoors — it feels institutional and attracts more insects.
Waterproof Ratings
Outdoor railing lighting must be rated for wet locations:
- IP65: Protected against water jets. Adequate for most covered outdoor applications.
- IP67: Protected against temporary immersion. Recommended for exposed outdoor railings.
- IP68: Protected against continuous submersion. Necessary only for underwater pool applications.
Power and Wiring
LED strips run on low voltage (12V or 24V DC), powered by a transformer/driver that converts household 120V AC. Key considerations:
- Plan wiring during installation — running wire through spigots and cap rails is much easier before the glass is set.
- Transformer sizing: Add up the wattage of all LED strips and choose a transformer rated at 20% above the total.
- Wire gauge: For runs over 15 feet, use 16-gauge wire to minimize voltage drop.
- Dimmer compatibility: Use a PWM dimmer rated for LED strips, not a standard household dimmer.
Smart Home Integration
Modern LED drivers can be connected to smart home systems (Z-Wave, Zigbee, Wi-Fi) for app or voice control. Schedule your railing lights to turn on at sunset and off at a set time, or integrate them with motion sensors for pathway safety lighting.
Solar-Powered Options
For locations without easy access to electrical circuits, solar-powered LED caps are available for individual spigots or post tops. They provide accent lighting without any wiring, though brightness is lower than hardwired strips.
FAQ
How much does railing LED lighting cost?
Budget $5–$15 per linear foot for quality outdoor-rated LED strip plus transformer. A 24-foot railing typically costs $200–$400 for the complete lighting setup including transformer and dimmer.
Can I add lighting to an existing glass railing?
Yes, but it is easier to add during initial installation. Retrofitting requires running wire externally or through the cap rail, which may involve temporarily removing sections. Under-spigot puck lights are the easiest retrofit option.
Do LED lights affect glass railing warranty?
Adding LED lighting does not typically affect the railing hardware warranty, as long as the installation does not modify the structural components. The LED lighting system would have its own separate warranty.
